D2238M

(Brush DC有刷馬達)

Output Power 輸出功率: 1W~8W

Weight 重量: 54g (Approx.)

Typical Application 典型應用

Home Application: Small Appliance, Electric Curtain,

Electric Windows/Door

家用電器：小家電，電動窗簾，電動門窗

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer,

Centrifugal Machine

醫療器械：醫療泵，手術器械，攪拌機，離心機

Industry Facilities: Printing Machine, Binding Machine, Cutting Machine,

Bottle Opener

工業設備：印刷機，裝訂機，裁剪機，開瓶機

Business Equipment: Cash Register, ATM, TV Set Frame

商業設備：點鈔機，ATM機，電視機架

Personal Care: Massager, Vibrator, Malaxation Apparatus,

Scrub Apparatus

個人護理：按摩器，震動器，揉捏器，磨砂器

Model

型號

(Brush DC 有刷)

電壓 Voltage(V)

No Load 空載

Rated Load 額定負載

Stall 堵轉

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

D2238M-S01

9-14

12

5380

0.06

9.8

3530

0.54

3.65

28.6

1.45

D2238M-S02

16-26

24

5720

0.03

4.9

4690

0.15

2.42

27.4

0.71

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。

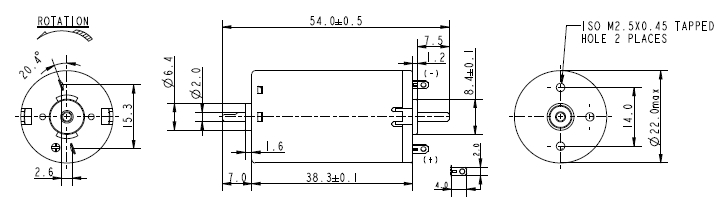

Usable machine screw length 3mm max. from motor mounting surface

Unit: Millimeter

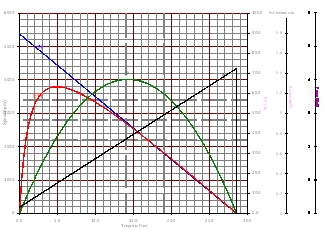

D22388M-S01                 12V

D2238M-S02                 24V
