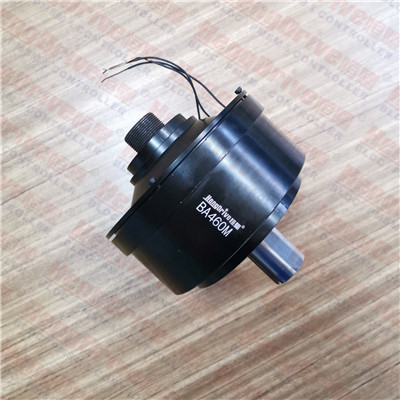

BA460M

Output Power 輸出功率: 50W~120W

Weight 重量: 2.86Kg (Approx.)

Directly Drive Brushless DC Motor (DD BLDC) -(In development)

直驅無刷直流電機-典型應用 (研發中)

With External Driving Controller 帶外置驅動控制器

Home Application: Washing Machine    家用電器：洗衣機

Business Equipment: Game Racing Wheel, Wheelchair Hub Motor

商業設備：游戲賽車，輪椅輪轂電機

Model

型號

Voltage(V) 電壓

No Load 空載

Rated Load 額定負載

Stall 堵轉

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (Nm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (Nm)

Current (A)

BA460M-S01

12-28

24

1076

0.89

2

522

7.35

116

3.91

15

BA460M-S02

12-28

24

936

0.68

1.3

634

4.57

86.4

3.99

15

BA460M-S03

12-28

24

963

0.71

0.65

789

2.69

53.8

4.13

15

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。

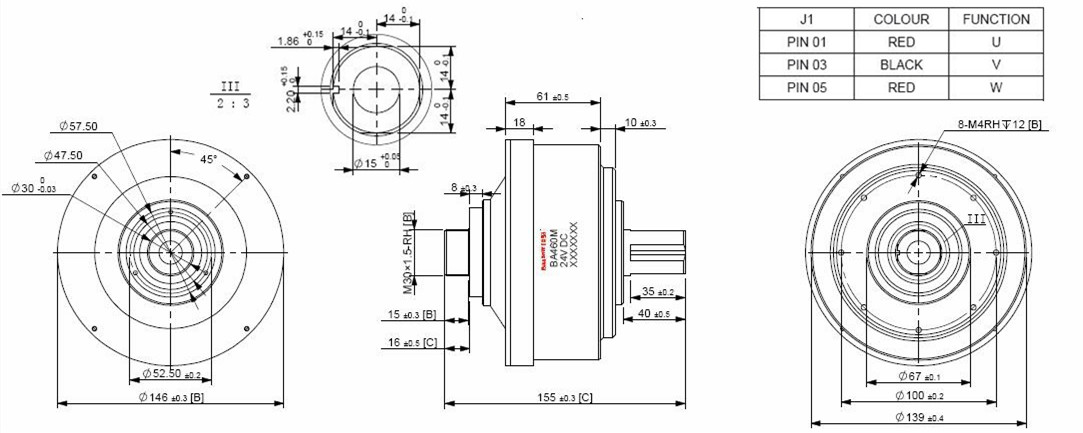

Usable machine screw length 8.0mm max. from motor mounting surface

Unit: Millimeter

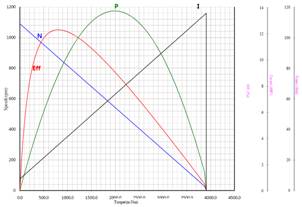

BA460M-S01                      24V

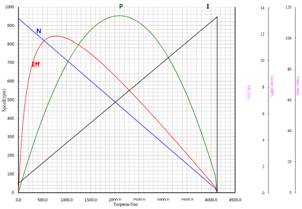

BA460M-S03                        24V
