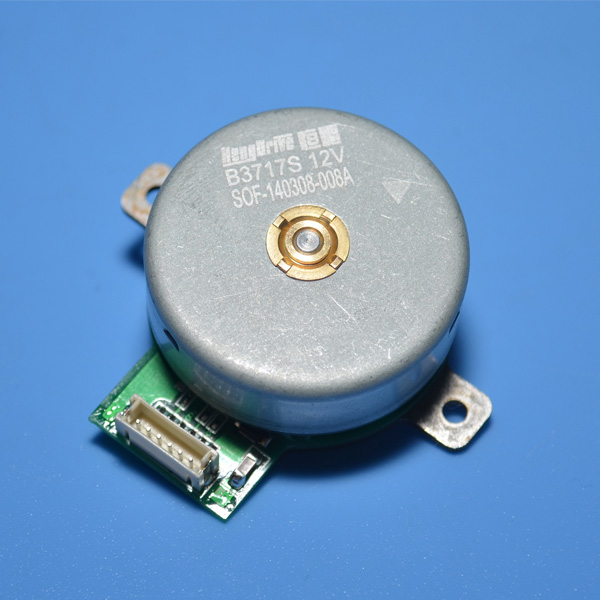

B3717S

Outer Rotor

Output Power 輸出功率: 2W~15W

Weight 重量: 90g (Approx.)

外轉子

Brushless DC Motor-Typical Application 直流無刷電機-典型應用

Home Application: White Goods, Small Appliance, Electric Fanner, Stirrer, Cross-flow Fan   家用電器：白色家電，小家電，電風扇，攪拌器，貫流風機

Medical Apparatus: Medical Pump, Medical Stirrer, centrifugal Machine   醫療器械：醫療泵，醫用攪拌機，離心機

Instrument & Meter: Microscope, measurement meter    儀器儀表：顯微鏡，測量?jī)x器

Industry Facility: Electric Valve, Linear Actuator   工業設備：電動閥門，線性驅動器

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine   商業設備：打印機，復印機，投影機，ATM機，售賣機

Personal Care: Portable Air Filter, Massager   個人護理：便攜式空氣過濾器，按摩器

Model

型號

電壓 Voltage(V)

No Load 空載

Rated Load 額定負載

Starting 起動

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B3717S-S01

8-26

12

6640

0.19

14.72

5440

1.11

8.38

39.0

2.50

B3717S-S02

8-26

16

4840

0.20

17.66

4400

0.748

8.13

77.1

2.50

B3717S-S03

8-26

24

6400

0.09

4.91

5400

0.23

2.78

31.4

0.99

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。

B3717S-S01                     12V DC

B3717S-S02                      16V DC
