專業研發、生產無刷電機及其驅動器

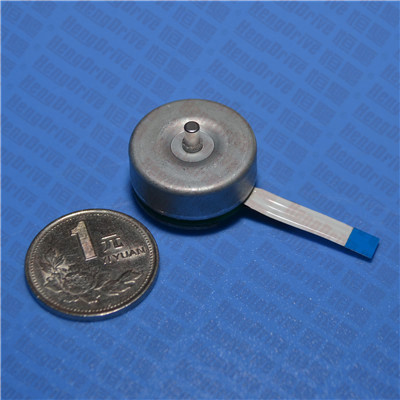

B2410S

Outer Rotor

Output Power 輸出功率: 0.05W~15W

Weight 重量: 20-25g (Approx.)

外轉子

3-Phase Brushless DC Motor-Typical Application 三相無刷直流電機-典型應用

Home Application: Clean Robotics, Mini Air Fresher

家用電器：掃地機器人，空氣凈化器

Personal Care: Gas Breathing Mask

個人護理：呼吸機，呼吸過濾面罩

Model

型號

電壓 Voltage(V)

No Load 空載

Rated Load 額定負載

Stall堵轉

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B2410S-S01

3

3

3674

0.05

0.196

3146

0.078

0.065

1.36

0.24

B2410S-S02

5-12

5

3900

0.16

2.943

2790

0.43

0.86

9.74

1.03

B2410S-S03

7.2

7.2

11742

0.42

4.905

8506

1.54

4.37

17.79

4.49

B2410S-S04

8-27

14

17151

0.45

7.85

13213

1.47

10.86

33.20

4.82

B2410S-S05

8-15

12

15933

0.37

5.98

13074

1.2

8.2

33.11

3.0

B2410S-S06

8-15

12

19926

0.65

9.0

14427

2.39

13.59

32.51

3.0

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。

B2410S-S02             5V

B2410S-S03              7.2V
