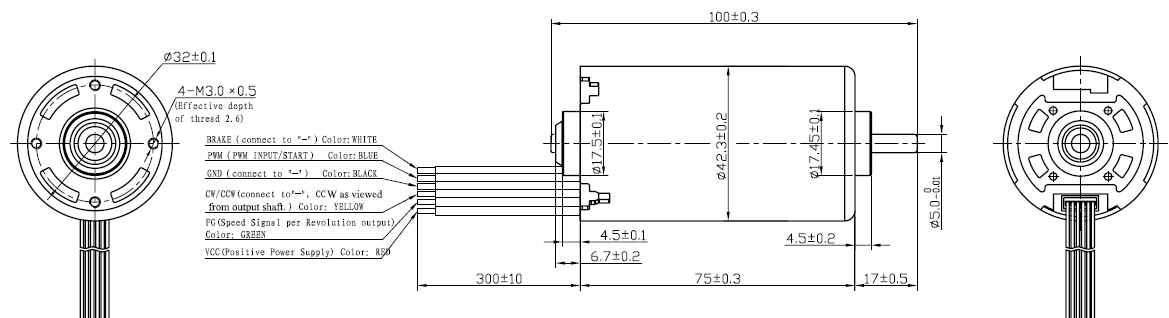

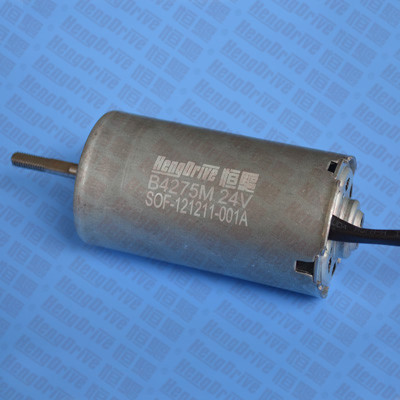

B4275M

Output Power 輸出功率: 10W~60W

Weight 重量: 330g (Approx.)

Brushless DC Motor-Typical Application 直流無刷電機-典型應用

Automotive Parts: Pump, Fan, Actuator    汽車部件：泵，風機，致動器

Home Application: Electric Window, Electric Door, Fanner, Shredder,

Meat Grinder

家用電器：電動窗，電動門，無風葉電風扇，有風葉風扇，粉碎機，絞肉機

Medical Apparatus: Medical Bed, Electric Wheel Chair, Surgery Tools,

Operating Table, Centrifugal Machine

醫療器械：醫療床，電動輪椅，手術器械，手術臺，離心機

Power Tools: Screwdriver, Drill, Air Compressor

電動工具：電動螺絲批，電鉆，氣體壓縮機

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine,

Shredder

商業設備：打印機，復印機，投影機，ATM機，售賣機，碎紙機

Personal Care: Hair Dryer, Massager, Vibrator   個人護理：風筒，按摩器，震動器

Model

型號

電壓 Voltage(V)

No Load 空載

Rated Load 額定負載

Stall 堵轉

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B4275M-S01

8-26

12

2511

0.43

107.9

1310

2.38

14.8

222

5.0

B4275M-S02

8-26

12

2813

0.34

85

2292

2.29

20.4

458

5.0

B4275M-S03

8-26

18

3790

0.32

84.02

2930

2.00

25.8

368

5.0

B4275M-S04

8-26

24

4996

0.28

98.1

33593

2.23

40.6

468

5.0

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。

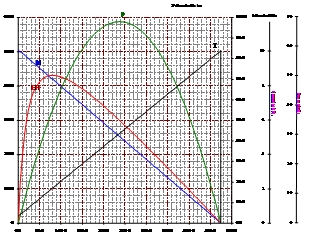

B4275M-S01                12V

B4275M-S04               24V
