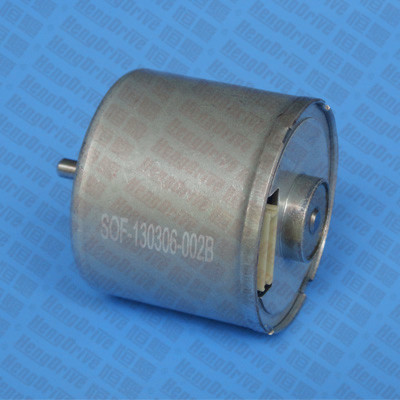

B3630M

Output Power 輸出功率: 1W~16W

Weight 重量: 110g (Approx.)

Brushless DC Motor-Typical Application 無刷直流電機-典型應用

Home Application: Electric door, Electric Window, Electric Curtain,

Electric Awning

家用電器：電動門，電動窗，電動窗簾，電動遮陽棚

Industry Facility: Transmission Equipment, Gear System, Actuator

工業設備：傳動機械，齒輪系統，致動器

Electronic Equipment: Electric Valve, Small Switcher, Lighting Adjustor,

Small Percussion Drill

電控設備：電動閥門，小型轉換器，燈光調節器，電動扳手

Business Equipment: Electric Gate, Banking Facility, ATM, Vending Machine

商業設備：電動門禁，銀行設施，ATM機，售賣機

Personal Care: Massager   個人護理：按摩器

Model

型號

電壓 Voltage(V)

No Load 空載

Rated Load 額定負載

Stall 堵轉

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B3630M-S01

5.8-12

6

2940

0.39

10.00

2270

0.91

2.38

44.05

2.5

B3630M-S02

8-26

12

5200

0.27

14.72

4260

0.90

6.56

81.30

2.5

B3630M-S03

8-26

24

6970

0.20

19.62

5640

0.76

11.58

102.51

2.5

B3630M-S04

8-26

24

15755

0.39

20.00

13213

1.59

27.67

123.9

3.5

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

注意：上述規格僅針對特定客戶，電壓、扭矩、轉速、電流、功率、輸出軸的特征和尺寸等都可以按照客戶的特殊要求進行調整。

B3630M-S02                 12V

  B3630M-S03               24V
